| ¡öCam Switch |
| ◊Upper base designation |
 |
Designation |
Signal |
Description |
| 1.Mounting Hole |
2 |
Φ22/Φ25 |
| 3 |
Φ30 |
| 2.Handle |
S |
Short handle |
| K |
Key |
|
| ◊Dimensions |
  |
| ◊Fixing block designation |
 |
Designation |
Signal |
Description |
| 1.Position |
2~8 |
2~8 Position |
| 2.Turn angle |
4 |
45° |
| 9 |
90° |
| 3.Operation |
None |
Hold |
| R |
Spring return
(45,2position,3position only) |
|

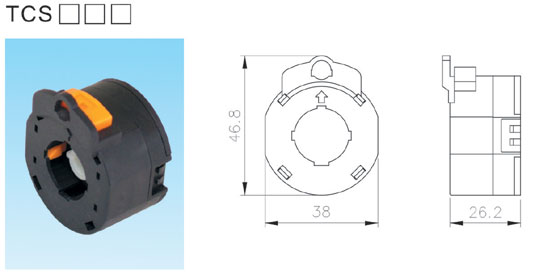

| ◊Dimensions |
 |
|
| ◊Contact block designation |
 |
Designation |
Signal |
Description |
| 1.Capacity |
1 |
10A |
| 2 |
16A |
| 3 |
25A |
| 2.NO.of Contacts Fitted |
S |
Single-point contact |
| C |
Double-point contact |
|

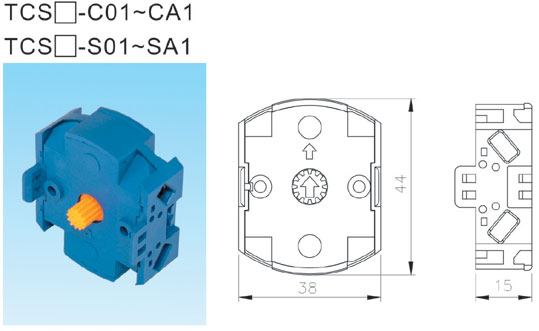

| ◊Dimensions |
|
|
|
