| ¡öCam Switch |

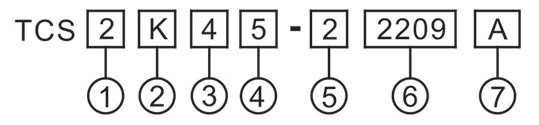

| ◊Model designation(2~3 positions) |
 |
| Designation |
Signal |
Description |
| 1.Mounting Hloe |
2 |
22mm/25mm |
| 3 |
30mm |
| 2.Type |
S |
Knob operator |
| K |
Key operator |
| 3.Positions |
1 |
 |
| 2 |
 |
| 3 |
 |
| 4 |
 |
| 5 |
 |
| 6 |
 |
4.Key withdrawable
(Only key operator) |
1 |
 |
0,1Key with-drawable |
| 2 |
0 Key with-drawable |
| 3 |
1 Key with-drawable |
| 4 |
 |
0,1,2 Key with-drawable |
| 5 |
0 Key with-drawable |
| 6 |
 |
0,1,2 Key with-drawable |
| 7 |
0 Key with-drawable |
| 5.Capacity |
1 |
10A |
| 2 |
16A |
| 3 |
25A |
| 6.Key number |
A |
3313 |
E |
3131 |
| B |
1313 |
F |
3133 |
| C |
1331 |
G |
3212 |
| D |
3113 |
H |
3331 |
|

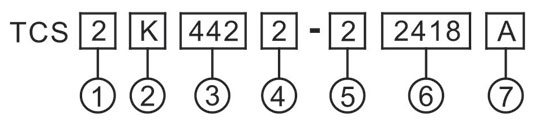

| •Model designation(4~8 positions) |
 |
| Designation |
Signal |
Description |
| 1.Mounting Hloe |
2 |
22m/25mm |
| 3 |
30mm |
| 2.Type |
S |
Knob operator |
| K |
Key operator |
3.Key Withdrawable
(Only key operator) |
1 |
Key with-drawable |
| 2 |
0 Key with-drawable |
| 4.Capacity |
1 |
10A |
| 2 |
16A |
| 3 |
25A |
| 5.Key number |
A |
3313 |
E |
3131 |
| B |
1313 |
F |
3133 |
| C |
1331 |
G |
3212 |
| D |
3113 |
H |
3331 |
|

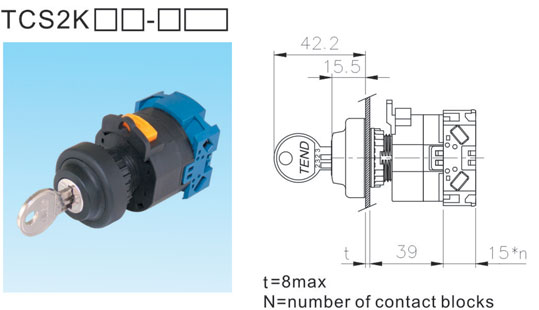

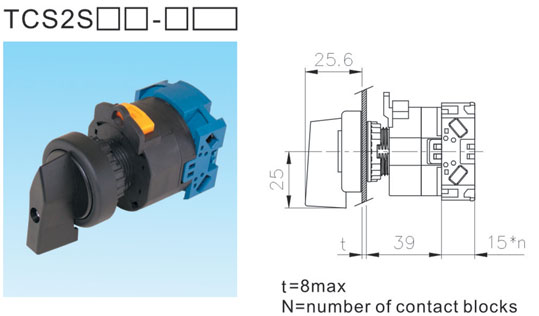

| •Dimendions |
 |
|
|
|
|
