■Cam Switch
|
| ■Features |
1.Diversfied operating ways.handles
adndplates.
2.Unique modular design of contact
blocks keeps internal parts from falling
apart when contact blocks are
disassembled or replaced.
3.Canassemble or disassemble contact
blocks to suit for various models yet
without risking excessive stock.
4.Contact blocks can be added click-on
easily,no need to unscrew.
5.Connecting screws are fastened from
the back rather than normally from the
side.It makes wiring easier.
6. A special design to keep connecting
terminals terminals and screws in the
contact blocks can prevent users from
|
 |
|
electric shocking.
7.All the connecting pieces of terminals are covered to avoid electric shocking.
8.Capacities are differentiaed by colors of contact blocks:blue for 10A;gray for
16A
and black for 25A. |
|

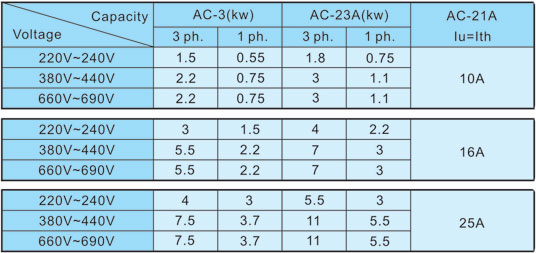

| ■Specifications |
|
| Rated roltage |
AC-3 ( HP ) |
Motor load |
| 3 ph. |
1 ph. |
| 120V |
0.75 |
0.33 |
10A |
| 240V |
1 |
0.75 |
| 120V |
1.5 |
0.5 |
16A |
| 240V |
3 |
1.5 |
| 120V |
3 |
1.5 |
25A |
| 240V |
7.5 |
3 |
| 480V |
10 |
5 |
|

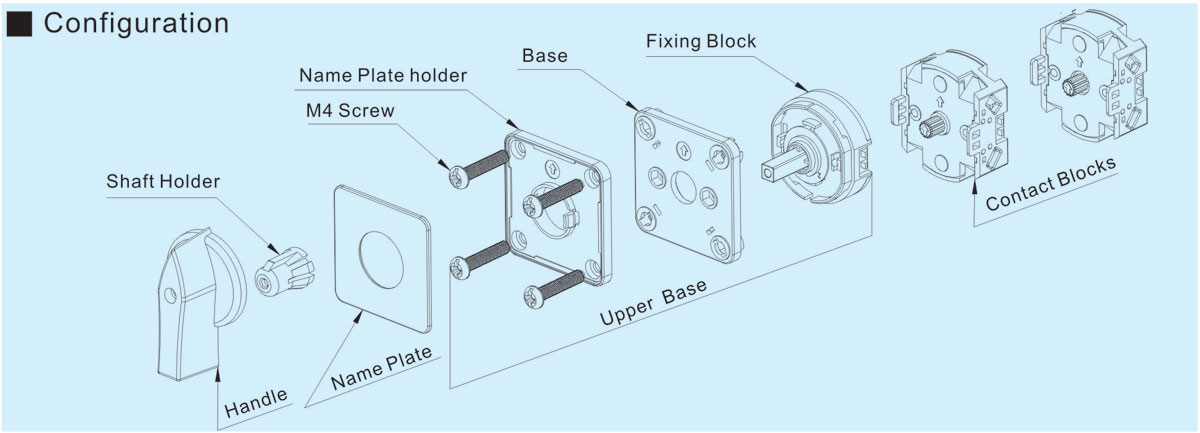

| ■Configuration |
|
■For panel series No.48 and No.64,the handles,engraving plates,upper bases and
contacts can be disassembled by DIY.

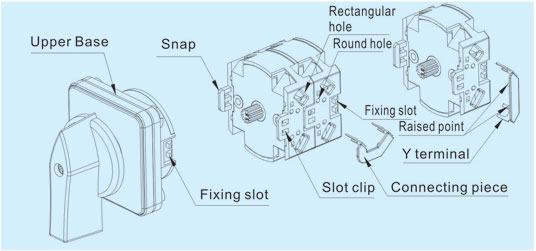

●Assembly and disassembly of upper base and contact or those of two contacts. |
|
|
●Assembly between upper base and contact block:point and push the raised part
of the upper base into the hole of contact block.
●Assembly between contact blocks:point and push the raised part of the contact
block into the hole of another contact blocks.
●Disassembly:lift the raised part of contact with "-" shape screwdriver.
●Assembly of connecting piece:insert the "Y" shape terminal of the connecting piece
into the rectangular holes flanking the contact and press the raised point of
connecting piece down into the round hole of contact block. |
|
| |
