The upper base and contact block of this series of control components are deta
chable. IP65 (IEC144),the protection structure for this series except Twin-Touch push button (IP40), makes the components waterproof, oiltight, dustproof and suitable for use in worse environment.
，Panel cut-out ，Dimensions(mm)
　Series
Φ 22
Φ 25
Φ 30
　C
11.1
12.7
15.2
　D
22.2
25.5
30.5
A
 　Standard spacing (Round 　type, Square type)
45min
45min
45min
　Lever operator selector
50
50
50
　Twin-Touch push button
59
59
59
　Metal plate
45
45
50
B
 　Standard spacing (Round 　type, Square type)
30
30
40
　Lever operator selector
45
45
50
　Twin-Touch push button
36
36
36
　Metal plate
31
31
40
　Φ 37 Mushroom
38
38
40

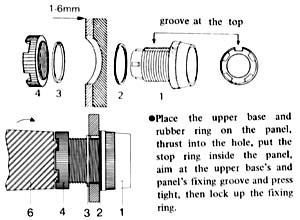

，Mounting method 　　　　　　　　　　　　，The assembly method for Φ30mm series
1
2
3
4
5
6
upper base
rubber
ring

stop ring
fixing
ring
contact
block
fixing
instrument

，Method to replace lamp:
Put the fixing-disassembling tool into the lamp, turn clockwise and the lamp is fixed. If counter-clockwise, the lamp is disassemblinged.


，Indication of letters and symbols

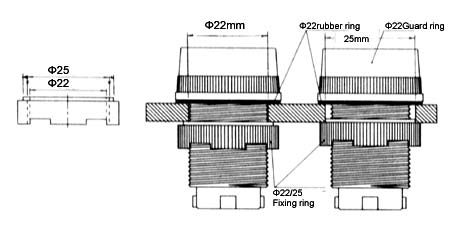

，Φ 22mm/Φ 25mm series are of same dimension and with common fixing ring.
