• Cam Switch

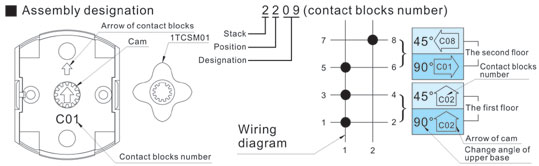

•Put cam to 1TCSM01,set the arrow of the contact blocks pointing "up", rotate cam and make cam's arrow pointing to the required direction. (see wiring diagram)
•Customer may order double-point contact coded as TCS¡õ-C01~CA3.or singe--point contact coded as TCS¡õ-S01~SA3

•Way of assembly:as illustrated above When the turning angle of upper base is 45¡ã .thearrow of the first layer coded CO8 points to the left.
When the turning angle of upper base is 90¡ã ,the arrow of the first layer of contact coded CO2 points "up",while that of the second layer coded CO1 points to the right.

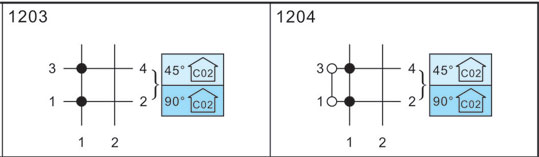

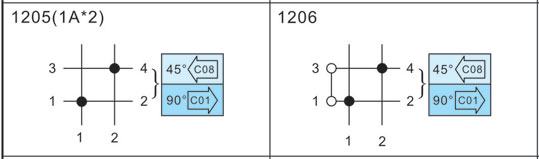

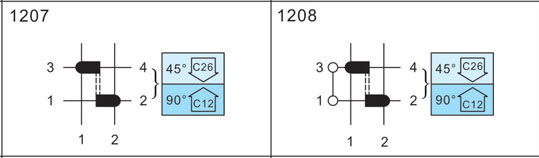

¡öWiring Diagram
One stacks
