¡öCam Switch
|

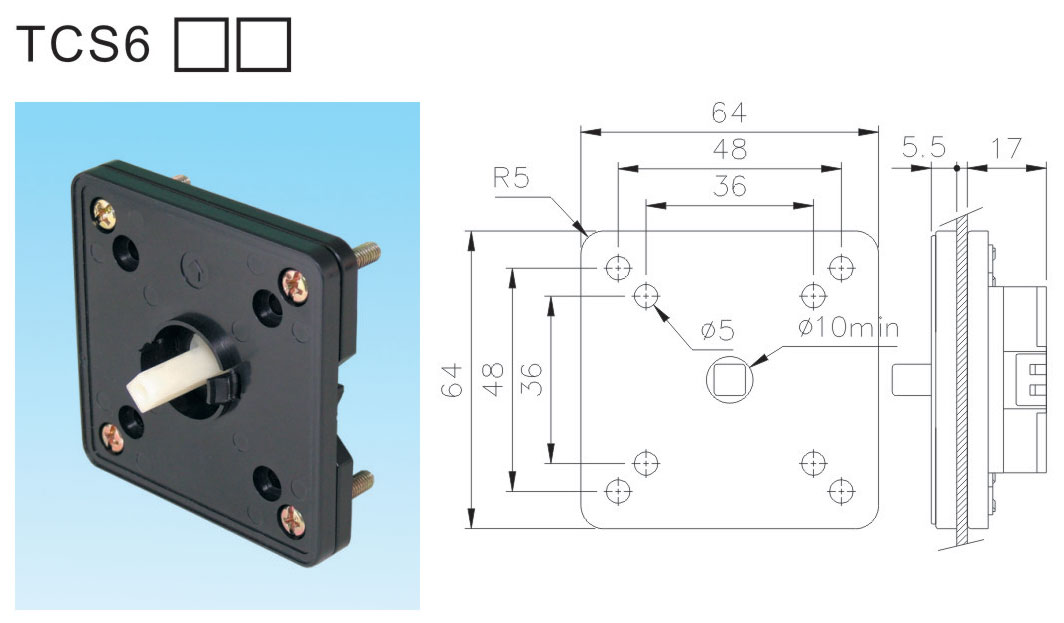

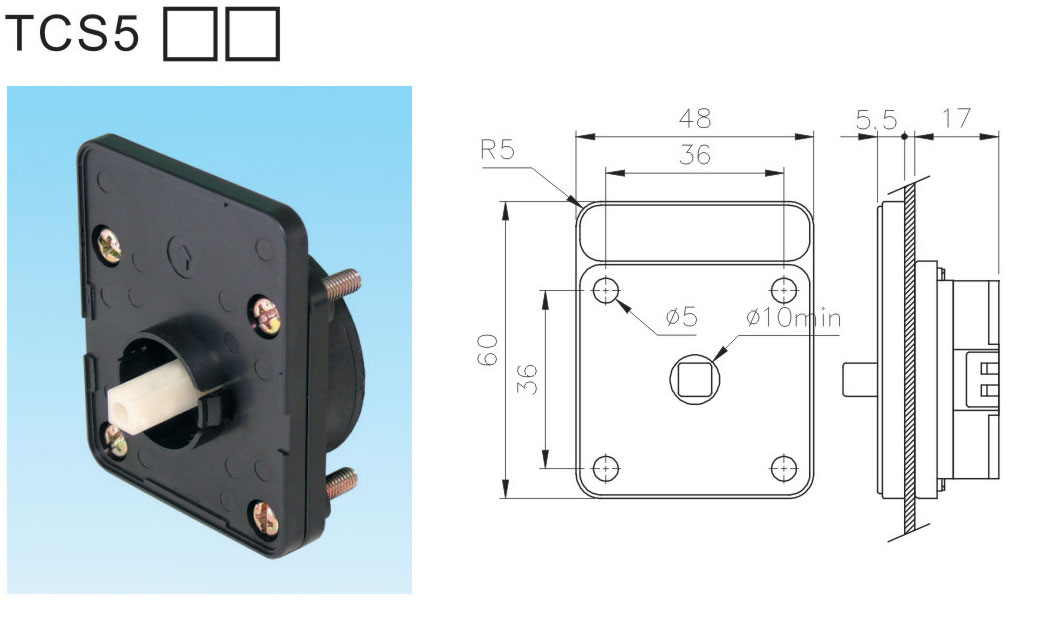

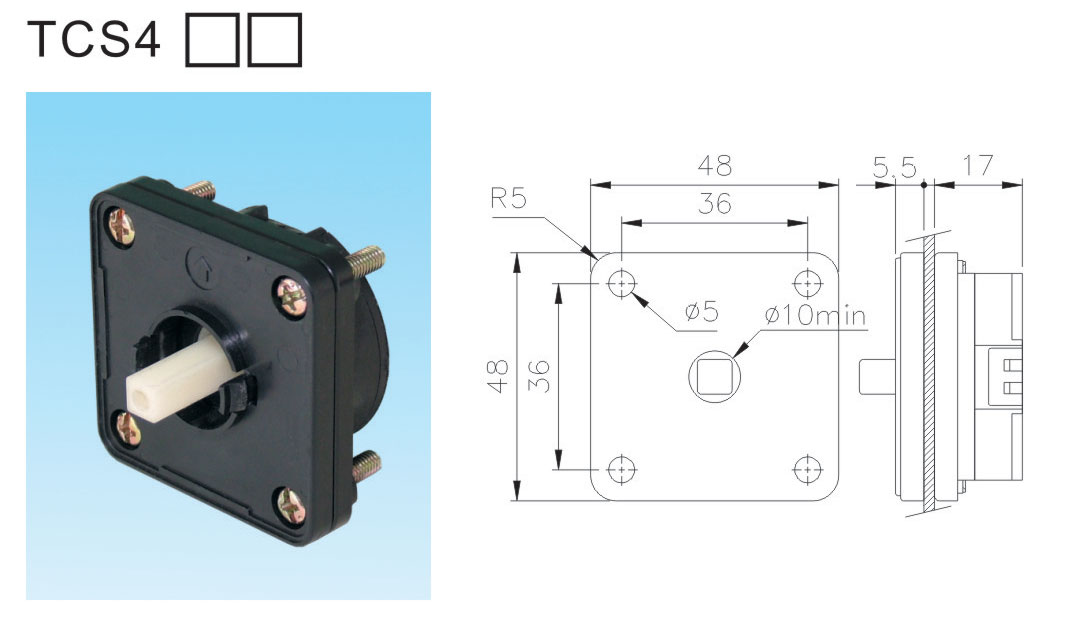

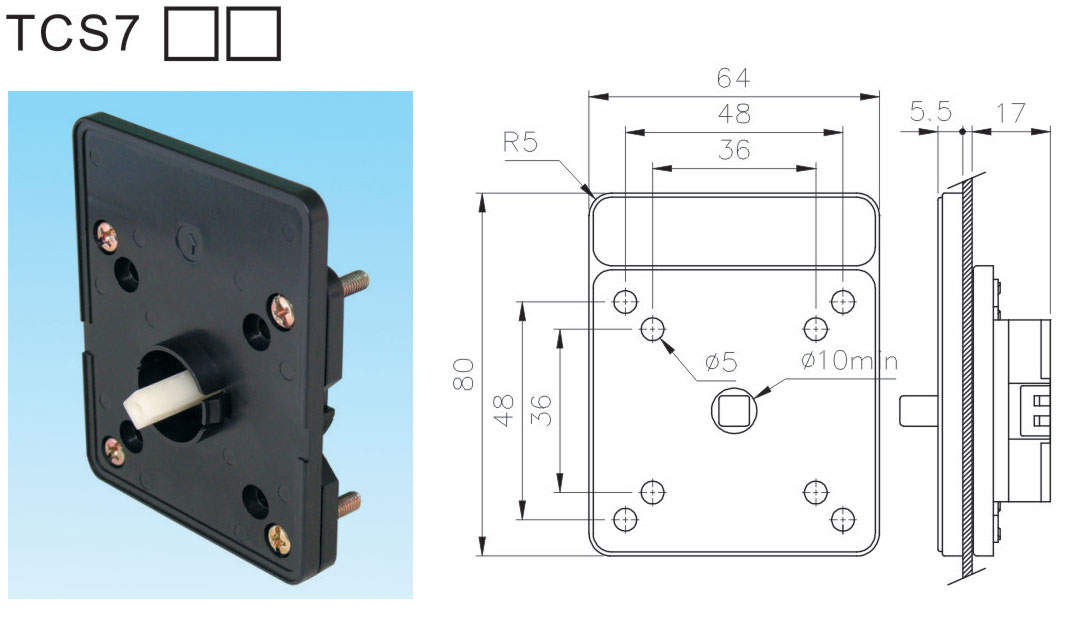

| ¡öUpper base dimension |
|
|
|
| Designation |
Signal |
Description |
| 1.Size |
4 |
48*48 |
| 5 |
48*60 |
| 6 |
64*64 |
| 7 |
64*80 |
| 2.Position |
2~8 |
2~8 Positions |
| 3.Turn angle |
4 |
45¡ã |
| 9 |
90¡ã |
4.Operation
(45¡ã,2 position 3 position only) |
None |
Hold |
| R |
Spring return(except 90¡ã) |
|
|
 |
| Designation |
Signal |
Description |
1.Long plate
dimensionsr |
5P |
48*60 plate |
| 7P |
64*80 plate |

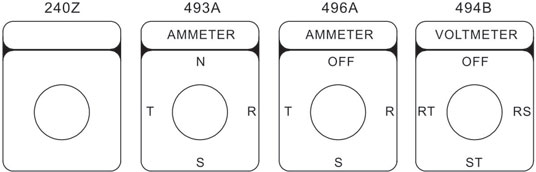

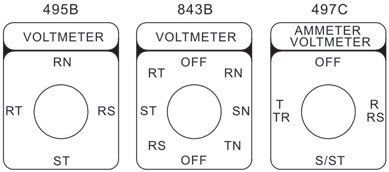

| 2.Long plate number |
240Z~497C |
¡ª¡ª |
|
|
|
|
| |
|
