| Type |
Label |
Button |
Pushbutton combination |
Description |
Diameter of lead |
Terminal |
Remarks |
Direct
Oper
ation |

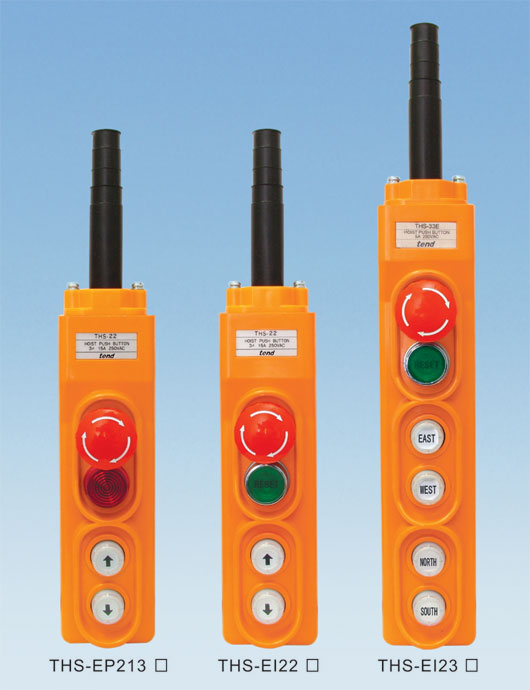

THS-EP213 |
None
A
B |
1 |
T2BKRR-2B Emergency stop 2B(red) |
10A 250VAC |
¦µ13.3
~¦µ16.5 |
M3.5 |
Control Motor Directly |
| 2 |
T2PR2R Indicator(Red) |
220VAC |
3
4 |
THS-213C 213Contact Block |
1¦µ
100/110V 0.75KW |
| THS-EI22 |
1 |
T2BKRR-1B Emergency stop 1B(red) |
10A 250VAC |
| 2 |
T2IFR2G-1A illuminated flat head push button switch 1A(green) |
220VAC |
3
4 |
THS-2C-S 21Contact Block |
3¦µ
200/220V 2.2KW
400/440V 2.2KW |
| THS-EI23 |
1 |
T2BKRR-1B Emergency stop 1B(red) |
10A 250VAC |
¦µ16.3
~¦µ19.5 |
| 2 |
T2IFR2G-1A illuminated flat head push button switch 1A(green) |
220VAC |
3 4
5 6 |
2*THS-2C-S 21 Contact Block*2 |
3¦µ
200/220V 2.2KW
400/440V 2.2KW |
