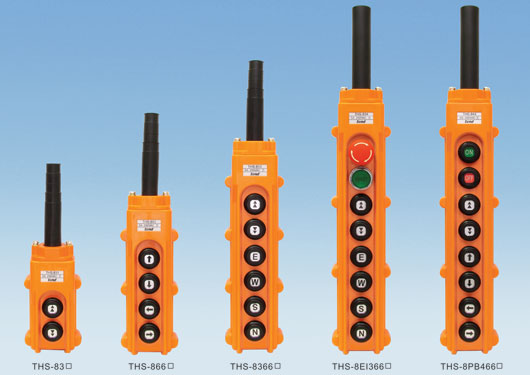

| ■Indirect hoist pushbuttonswitch (Waterproof Type) |
■Features
●This switch is IP67 waterproof and made out of ABS housing.Suitable for out-door
use.
●Single speed switch is designed with mechanical interlock mechanism.Double speed
is designs can help prevent short-circuit.
●Can be used with emergency stop, pilot lamp, push button switch, or key switch.
●Single speed and double speed can be chosen alternatively. |
| ■Characteristics |
| Type |
SPEC |
Extemal Diameter of Cable |
Terminal |
Remarks |
| THS83C |
2A 500VAC
5A 250VAC |
Two
Holes |
Φ11.4~Φ12.6 |
M4 |
Control
magnetic
switch |

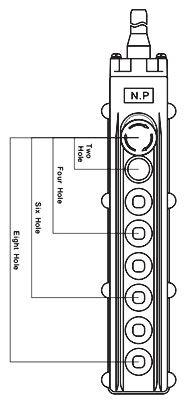

Four
Holes |
Φ14.3~Φ15.5 |
| THS86C |
Six
Holes |
Φ17.2~Φ18.4 |
Eight
Holes |
Φ15.7~Φ17.1 |
|
| |
One-Two
Holes |
Three-Four
Holes |
Five-Six
Holes |
Seven-Eight
Holes |
Label |
| THS-8 |
3 |
|
|
|
None
A
E |
| THS-8 |
3 |
3 |
|
|
| THS-8 |
6 |
6 |
6 |
|
| THS-8 |
EP |
6 |
6 |
6 |
|
| Designation |
Signal |
Description |
|
| Control Type |
3 |
Indirect Double Speed |
| 6 |
Indirect Single Speed |
Push button
Switch
|
EX |
Emergency Stop+ Waterproof Rubber |
| EB |
Emergency Stop+
Flat Push Button Switch |
| EI |
Emergency Stop+ Illuminated
Push button Switch |
| EK |
Emergency Stop+
Key Switch |
| EP |
Emergency Stop+
Pilot Lamp |
| ES |
Emergency Stop+
Selector Switch |
| PB |
On-off(1A) Switch |
|
|
| |
