| ¡¤Configuration of switches |
|
| ¡¤Features |
|

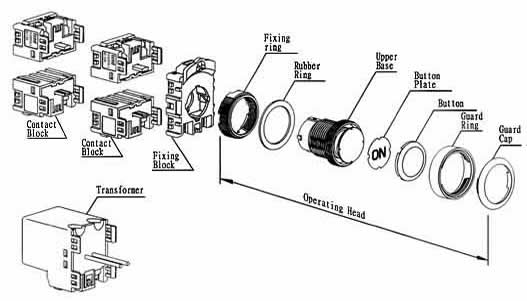

| TN2 series switches are detachable in
3 sub-assembly.It consists of upper base,fixing block
and contact block. |
|
|
| Assembly and disassembly of fixing block with upper base |
|
| Assembly and disassembly of fixing block
with contact block |
|
|
 |
|
| Assembly£º |
Aling the hole
on top of fixing block with groove on the upper base and
push them together. |
| Disassembly£º |
Place downward by hand
or use flat screwdriver to push down the orange button
thru the hole on top of fixing block. |
|
| Assembly£º |
Aling the fixxing
slot on the fixing block to clip slot on the contact block.
|
| Disassembly£º |
Use flat screwdriver toward
fixing slot to lift up clip and snap for disassembly.
|
|
| |
|
