| Terminal Blocks （TB-1/2 Series) |
|
|
|
|
|
|
| TB-08 Series Pitch 6.35 mm |
|
| Specifications |
|
Barrier material:Thermoplastic (ul94v-0),Black
|
Insulation withstands voltage AC2000 |
| Terminals:Tin plated brass |
Insulation resistance 500MΩ or more at DC500V |
| Screws:Nickel plated steel |
Mounting end & barrier |
| Wire range awg:18-22 STR. |
End are both available |
| Rating:10Amperes,300VAC |
|
POLE |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
25.5 |
32 |
38 |
44.5 |
51 |
57 |
63.5 |
70 |
76 |
|
19.05 |
25.4 |
31.74 |
38.1 |
44.45 |
50.8 |
57.15 |
63.5 |
69.85 |
11 |
12 |
13 |
14 |
15 |
16 |
17 |
18 |
19 |
20 |
82 |
89 |
95 |
101.5 |
108 |
114 |
120 |
127 |
133 |
139 |
76.2 |
82.55 |
88.9 |
95.25 |
101.6 |
107.95 |
114.3 |
120.65 |
127 |
133.35 |
21 |
22 |
23 |
24 |
25 |
26 |
27 |
28 |
29 |
30 |
146 |
152 |
158.5 |
165 |
171 |
177 |
184 |
191 |
202 |
222 |
139.7 |
146.05 |
152.4 |
158.75 |
165.1 |
171.45 |
177.8 |
184.15 |
191 |
196.85 |

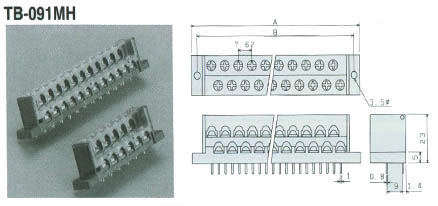

| TB-09 Series Pitch 7.62mm |
|
| Specifications |
|
| Barrier material:P.B.T.(UL94V-0) Black |
Rating:15Amperes,300VAC |
| Terminals:Tin plated brass |
Insulation withstands voltage AC2000 |
| Screws:Nickel plated steel |
Insulation resistance 500MΩ or more at DC500V |
| Cover:PC material |
Mounting end & barrier |
| Wire range awg:16-22STR |
End are both available |
2P-12P is also available
·Dimension:±0.8mm
POLE |
6P |
10P |
12P |
20P |
30P |
A |
70 |
101 |
116 |
177 |
253 |
B |
63 |
93 |
108 |
169 |
245 |
|
|
