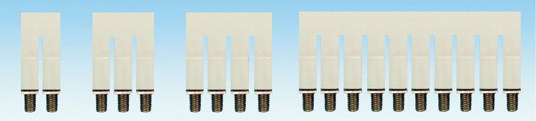

TBU⟨N-CN⟨Cross-connection systems

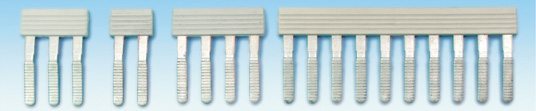

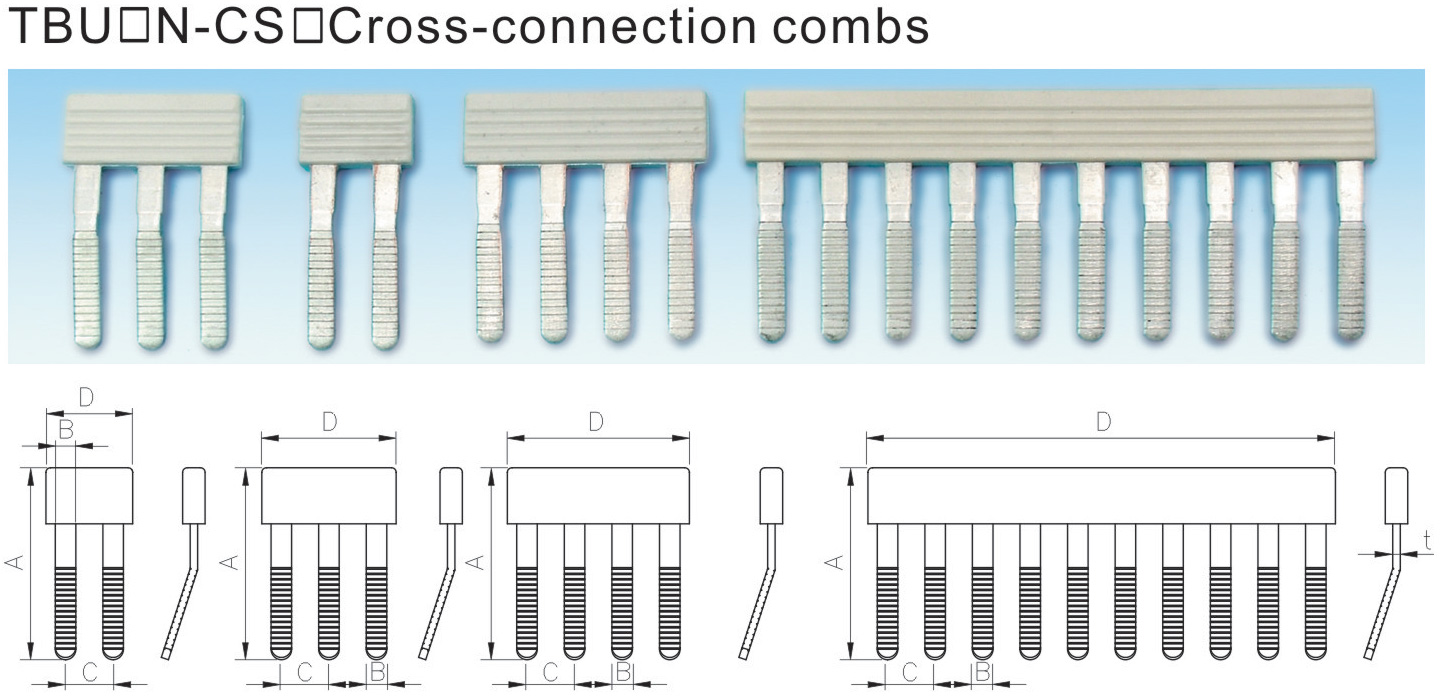

TBU⟨N-CS⟨Cross-connection combs
Cross-connection systems Cross-connection combs

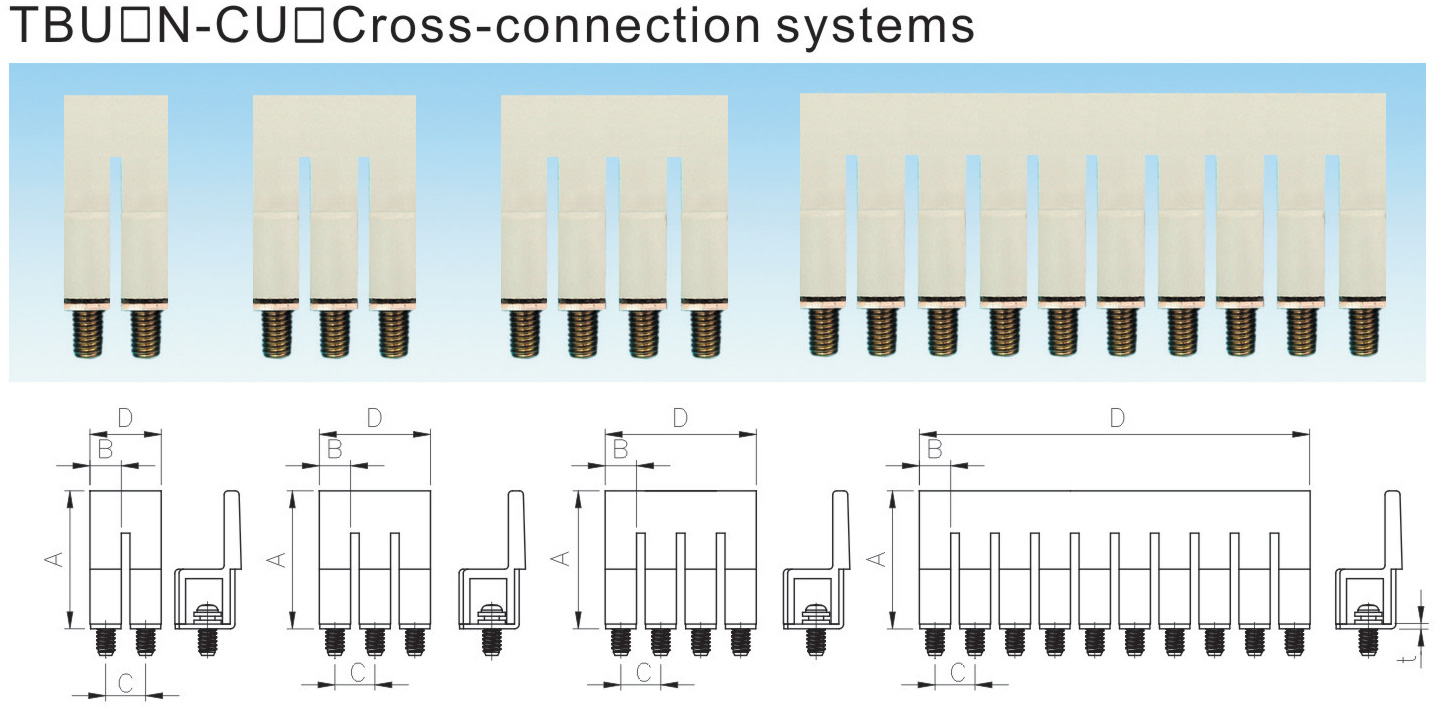

TBU⟨N-CN⟨Cross-connection systems
Type Pole Used at Qty. dimension
A B C D t
TBU2.5N-CU2 2 TBU-2.5N 50 17.8 4 5.1 9.1 0.6
TBU2.5N-CU3 3 TBU-2.5N 50 17.8 4 5.1 14.2 0.6
TBU2.5N-CU4 4 TBU-2.5N 50 17.8 4 5.1 19.3 0.6
TBU2.5N-CU10 10 TBU-2.5N 20 17.8 4 5.1 49.9 0.6
TBU4N-CU2 2 TBU-4N 50 18.2 4.5 6.2 10.7 1
TBU4N-CU3 3 TBU-4N 50 18.2 4.5 6.2 16.9 1
TBU4N-CU4 4 TBU-4N 50 18.2 4.5 6.2 23.1 1
TBU4N-CU10 10 TBU-4N 20 18.2 4.5 6.2 60.3 1
TBU6N-CU2 2 TBU-6N 50 18.2 6.2 8.2 14.4 1
TBU6N-CU3 3 TBU-6N 50 18.2 6.2 8.2 22.6 1
TBU6N-CU4 4 TBU-6N 50 18.2 6.2 8.2 30.8 1
TBU6N-CU10 10 TBU-6N 20 18.2 6.2 8.2 80.8 1
TBU10N-CU2 2 TBU-10N 50 24.9 8 10.2 18.2 1
TBU10N-CU3 3 TBU-10N 50 24.9 8 10.2 28.4 1
TBU10N-CU4 4 TBU-10N 50 24.9 8 10.2 38.6 1
TBU10N-CU10 10 TBU-10N 20 24.9 8 10.2 99.8 1
TBU16N-CU2 2 TBU-16N 50 26.2 9.4 12 21.4 1
TBU16N-CU3 3 TBU-16N 50 26.2 9.4 12 33.4 1
TBU16N-CU4 4 TBU-16N 50 26.2 9.4 12 45.4 1
TBU16N-CU10 10 TBU-16N 10 26.2 9.4 12 117.4 1
TBU35N-CU2 2 TBU-35N 50 26.8 11.5 15.9 27.4 1.6
TBU35N-CU3 3 TBU-35N 50 26.8 11.5 15.9 43.3 1.6
TBU35N-CU4 4 TBU-35N 50 26.8 11.5 15.9 59.2 1.6
TBU35N-CU10 10 TBU-35N 10 26.8 11.5 15.9 154.6 1.6
Type Pole Used at Qty. dimension
A B C D t
TBU2.5N-CS2 2 TBU-2.5N 50
20.6
2.2
5.1
9.3
0.8
TBU2.5N-CS3 3 TBU-2.5N 50
20.6
2.2
5.1
14.4
0.8
TBU2.5N-CS4 4 TBU-2.5N 50
20.6
2.2
5.1
19.5
0.8
TBU2.5N-CS10 10 TBU-2.5N 20
20.6
2.2
5.1
50.1
0.8
TBU4N-CS2 2 TBU-4N 50
21.5
2.5
6.2
10.7
1
TBU4N-CS3 3 TBU-4N 50
21.5
2.5
6.2
16.9
1
TBU4N-CS4 4 TBU-4N 50
21.5
2.5
6.2
23.1
1
TBU4N-CS10 10 TBU-4N 20
21.5
2.5
6.2
60.3
1
TBU6N-CS2 2 TBU-6N 50
23.8
3.6
8.2
14.8
1.2
TBU6N-CS3 3 TBU-6N 50
23.8
3.6
8.2
23
1.2
TBU6N-CS4 4 TBU-6N 50
23.8
3.6
8.2
31.2
1.2
TBU6N-CS10 10 TBU-6N 20
23.8
3.6
8.2
80.4
1.2
TBU10N-CS2 2 TBU-10N 50
29.4
5.4
10.2
18.4
1.6
TBU10N-CS3 3 TBU-10N 50
29.4
5.4
10.2
28.6
1.6
TBU10N-CS4 4 TBU-10N 50
29.4
5.4
10.2
38.8
1.6
TBU10N-CS10 10 TBU-10N 20
29.4
5.4
10.2
100
1.6
TBU16N-CS2 2 TBU-16N 50
31
6.6
12
21
1.6
TBU16N-CS3 3 TBU-16N 50
31
6.6
12
33
1.6
TBU16N-CS4 4 TBU-16N 50
31
6.6
12
45
1.6
TBU16N-CS10 10 TBU-16N 10
31
6.6
12
117
1.6
TBU35N-CS2 2 TBU-35N 50
37.2
8.4
15.9
29.6
1.6
TBU35N-CS3 3 TBU-35N 50
37.2
8.4
15.9
45.6
1.6
TBU35N-CS4 4 TBU-35N 50
37.2
8.4
15.9
61.6
1.6
TBU35N-CS10 10 TBU-35N 10
37.2
8.4
15.9
157.6
1.6
