| ¡öFEATURES |
| TBU terminal block and TBE earthed terminal block may fit in either TBR-N or TBU-N rails simply with the frame-pressed line. |
| It's made of quenched and galvanized premiumsteel. |
|
Can use matching short-circuit tag.The design conforms to the requirem ents of international standard IEC60947-7-1 and IEC60947-7-2. |
|

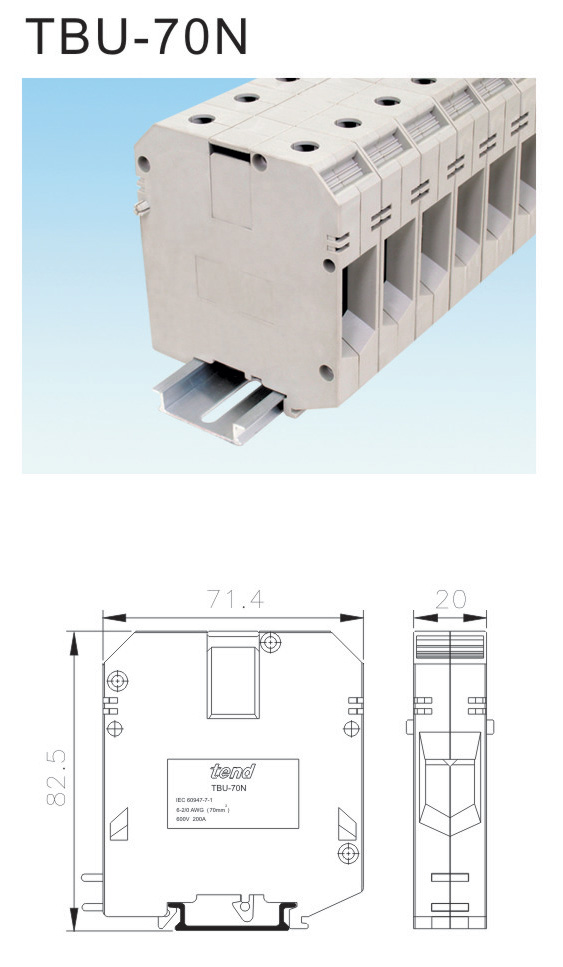

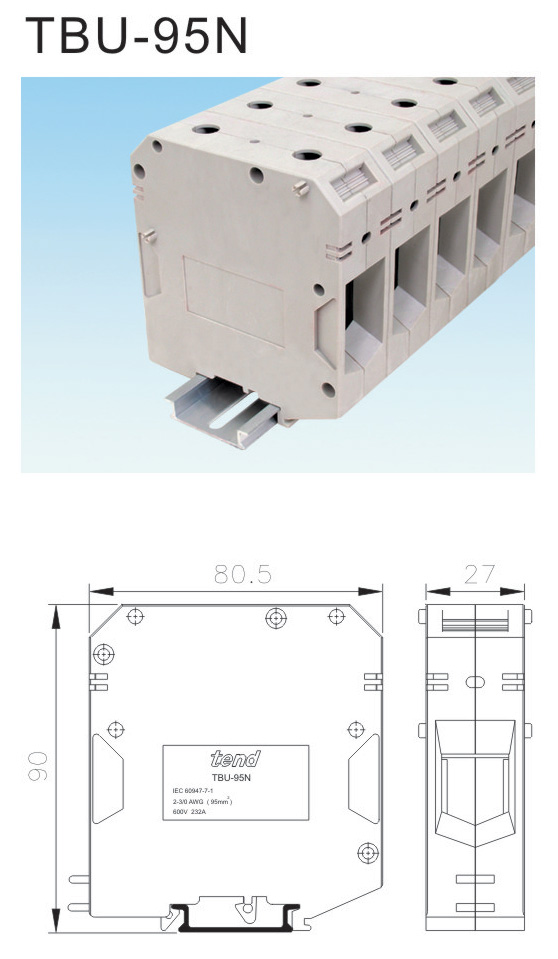

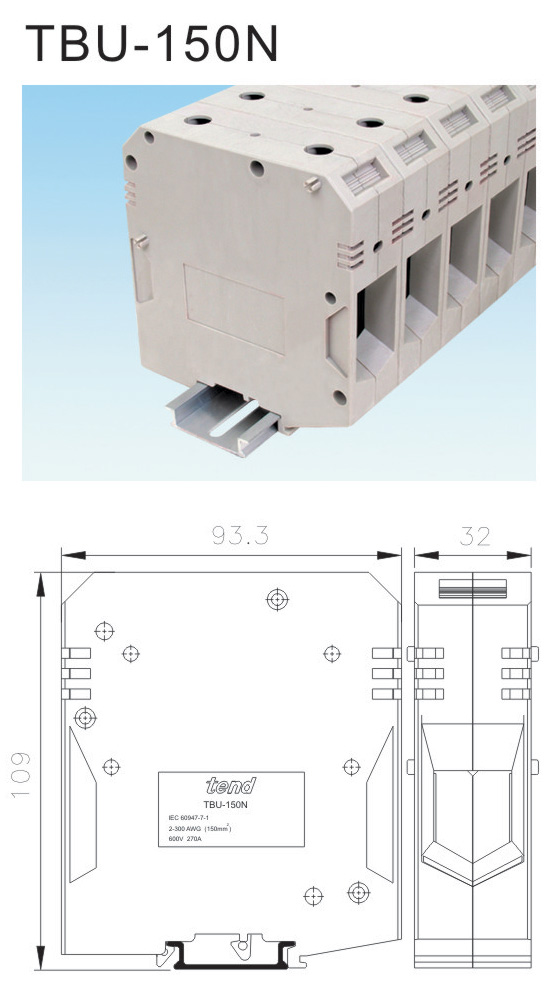

| Specifications |
IEC |
IEC |
IEC |
| Rated current |
200A |
232A |
269A |
| Rated voltage |
1000V |
1000V |
1000V |
| Cross - section |
70mm2 |
95mm2 |
150mm2 |
| Single center |
6-2/0AWG |
2/3-0AWG |
2-300AWG |
| Complex center |
6-2/0AWG |
2/3-0AWG |
2-300AWG |
| Rated impulse voltage |
5KV |
5KV |
5KV |
| Tightening torque range |
50kgf.cm |
90kgf.cm |
165kgf.cm |
| Clamping screw |
M6 |
M8 |
M10 |
Insulation stripping
length |
25~30mm |
30~35mm |
35~40mm |
| Accessories |
Type Qty. |
Type Qty. |
Type Qty. |
Marking tags
 |
TBU50N-A 50 |
TBU50N-A 50 |
TBU50N-A 50 |
End bracket  |
TBU35N-F 10 |
TBU35N-F 10 |
TBU35N-F 10 |
Mounting rails
 |
TBR-N(AI)/TBR-S(S) 1 |
TBR-N(AI)/TBR-S(S) 1 |
TBR-N(AI)/TBR-S(S) 1 |
|
TBU-N(AI)/TBU-S(S) 1 |
TBU-N(AI)/TBU-S(S) 1 |
TBU-N(AI)/TBU-S(S) 1 |
|
|
|
