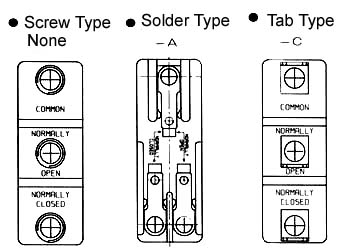

，Terminal type
Rated
voltage
(V)
Noninductive load(A) 　　　 　　　　Inductive load(A)
Inrush
current
(A)
Resistive load
Lamp load
Inductive
load
Motor load
NC
NO
NC
NO
NC
NO
NC
NO
NC
NO
125 VAC
250 VAC
300 VAC
15
15
3
3
2.5
1.5
1.5
1.25
0.75
15
15
2.5
5
3
1.5
2.5
1.5
0.75
30

max.		 15

max.
8 VDC
14 VDC
30 VDC
125 VDC
250 VDC
15
15
6(2)
0.4
0.2
3
3
3
0.4
0.2
1.5
1.5
1.5
0.4
0.2
15
10
5
0.05
0.03
5
5
5
0.05
0.03
2.5
2.5
2.5
0.05
0.03
Notes:
　　　1. Inductive load has a power factor of 0.4min. (AC) and a time constant or
7msec (DC).
　　　2. Lamp load has an inrush current of 10 times the steady-state current,
while motor load has an inrush current or 6 times the steady-state current.
，Characteristics
　Operating speed 　0.01mm to 1m/sec
　Operating
　frequency 		　Mechanically: 240 operations/min.
　Electrically: 20 operations/min.
　Contact resistance 　15mΩmax. (initial)
　Insulation
　resistance 		　100MΩmin. (at 500VDC)
　Dielectric strength 　1000VAC, 50/60Hz for 1 minute between
　non-continuous terminals
　2000VAC, 50/60Hz for 1 minute between
　current-carrying part and ground
　Vibration 　Mechanical durability: 10 to 55Hz
　1.5mm double amplitude
　Shock 　Mechanical durability:
　Approx. 1,000m/sec2 (approx. 100G's)
　Malfunction durability:
　Approx. 300m/sec2 (approx. 30G's)
　Ambient operating
　temperature 		　General purpose type: -25＜to +80≧
　Sealed type: -15 to 80≧
　Humidity 　General purpose type: 85%RH max.
　Sealed type: 95%RH
　Service life 　Mechanically: 20,000,000 operations min
　Electrically: 500,000 operations min.
　Weight 　Approx. 22 to 58g

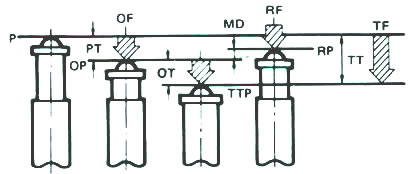

Definitions of operating characteristics
OF: Operating Force 　　　　　　 RF: Releasing Force
TF: Total Force 　　　　　　　　　 FP: Free Position
OP: Operating Position 　　　　　 RP: Releasing Position
TTP: Total Travel Position 　　　　 PT: Pretravel
OT: Overtravel　　　　　　　　　 MD: Movement Differential
TT:Total Travel
