¡€Features
1.The fuse boxcar be mounted in TBR-N rail or panel directly.
2.Cabling range from 1.5m©O¡«8m©O.
3.Make sure power has been cut off before change fuse.The indicator lamp will turn on when power is off.

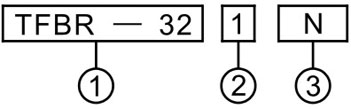

¡€Model Designation
Designation
Singal
Description
1.Mounting hole
TFBR
 Din rail mounted fuse box
2.No.of pole
321
322
323
1-POLE
2-POLE
3-POLE
3.Indicator lamp
N2
N3
110¡«220VAC
380¡«440VAC
None
¡€Specifiction
Rated voltage
Rated current
Operating temperature
Humidity
Application
Fuse size
600VAC max.
32A
-40 to 80°C
95%RH max.
Cable Protection Motor Protection
10¡Á38
¡€Dmensions
¡€Fuse box(With indicator lamp)
